Volimax

Voided Slab Disposable Formwork

Width and length52×52 cm
HeightSingle use 10, 13, and 16 cm
Double, triple, quadruple use combinations of 10, 13 and 16 cm
Concrete flow inspection cone
Integrated 2 cm concrete spacers
7 cm fixed feet, up to 12 cm with extensions
Made of recycled polypropylene

Detailed product information

Volimax product video

Volimax technical specifications

Detailed product information

Volimax technical specifications
Product Type	Formwork Dimensions	Formwork Height	Bottom Slab Thickness	Spacing Between Formworks	Center-to-Center Spacing	Formwork Consumption	Concrete Savings		Concrete Consumption Excl. Top-Bottom Slabs
Product Type	Formwork Dimensions	Formwork Height	Bottom Slab Thickness	Spacing Between Formworks	Center-to-Center Spacing	Formwork Consumption	m³/pc	m³/m²	Concrete Consumption Excl. Top-Bottom Slabs
	cm	cm	cm	cm	cm	pcs/m²			m³/m²
Volimax H10	52x52	10	7-12	12	64	2,44	0,022	0,054	0,046
				14	66	2,30		0,051	0,049
				15	67	2,23		0,049	0,051
				16	68	2,16		0,048	0,052
				18	70	2,04		0,045	0,055
				20	72	1,93		0,042	0,058

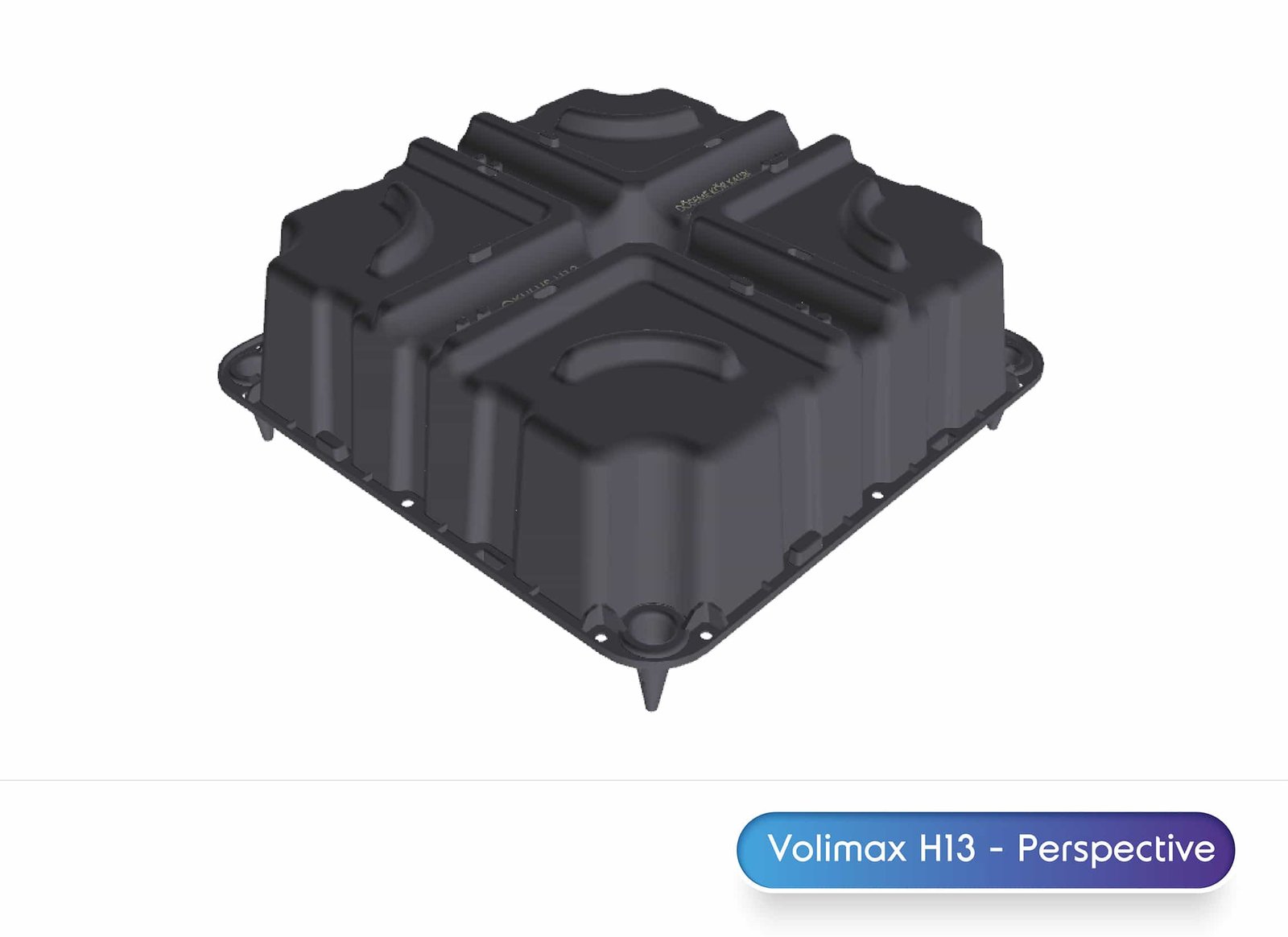

Volimax H13	52x52	13	7-12	12	64	2,44	0,028	0,068	0,062
				14	66	2,30		0,064	0,066
				15	67	2,23		0,062	0,068
				16	68	2,16		0,060	0,070
				18	70	2,04		0,057	0,073
				20	72	1,93		0,054	0,076
Volimax H16	52x52	16	7-12	12	64	2,44	0,033	0,081	0,079
				14	66	2,30		0,076	0,084
				15	67	2,23		0,074	0,086
				16	68	2,16		0,071	0,089
				18	70	2,04		0,067	0,093
				20	72	1,93		0,064	0,096
Volimax H20	52x52	20	7-12	12	64	2,44	0,039	0,095	0,105
				14	66	2,30		0,090	0,110
				15	67	2,23		0,087	0,113
				16	68	2,16		0,084	0,116
				18	70	2,04		0,080	0,120
				20	72	1,93		0,075	0,125
Volimax H23	52x52	23	7-12	12	64	2,44	0,050	0,122	0,108
				14	66	2,30		0,115	0,115
				15	67	2,23		0,112	0,119
				16	68	2,16		0,108	0,122
				18	70	2,04		0,102	0,128
				20	72	1,93		0,097	0,134

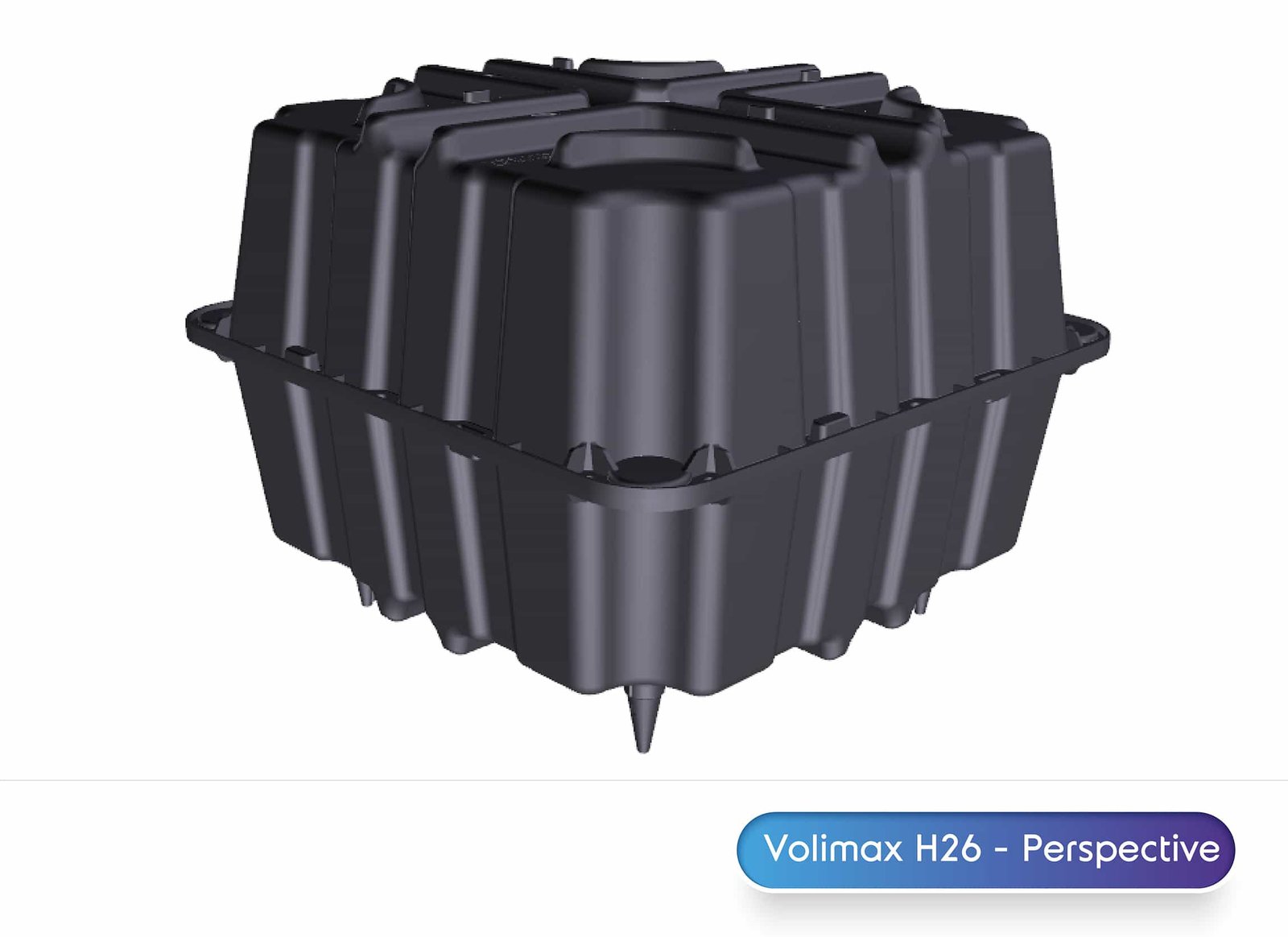

Volimax H26	52x52	26	7-12	12	64	2,44	0,056	0,137	0,123
				14	66	2,30		0,129	0,131
				15	67	2,23		0,125	0,135
				16	68	2,16		0,121	0,139
				18	70	2,04		0,114	0,146
				20	72	1,93		0,108	0,152
Volimax H29	52x52	29	7-12	12	64	2,44	0,061	0,149	0,141
				14	66	2,30		0,140	0,150
				15	67	2,23		0,136	0,154
				16	68	2,16		0,132	0,158
				18	70	2,04		0,124	0,166
				20	72	1,93		0,118	0,172
Volimax H30	52x52	30	7-12	12	64	2,44	0,061	0,149	0,151
				14	66	2,30		0,140	0,160
				15	67	2,23		0,136	0,164
				16	68	2,16		0,132	0,168
				18	70	2,04		0,124	0,176
				20	72	1,93		0,118	0,182
Volimax H32	52x52	32	7-12	12	64	2,44	0,066	0,161	0,159
				14	66	2,30		0,152	0,168
				15	67	2,23		0,147	0,173
				16	68	2,16		0,143	0,177
				18	70	2,04		0,135	0,185
				20	72	1,93		0,127	0,193
Volimax H33	52x52	33	7-12	12	64	2,44	0,067	0,163	0,167
				14	66	2,30		0,154	0,176
				15	67	2,23		0,149	0,181
				16	68	2,16		0,145	0,185
				18	70	2,04		0,137	0,193
				20	72	1,93		0,129	0,201

Volimax Accessories

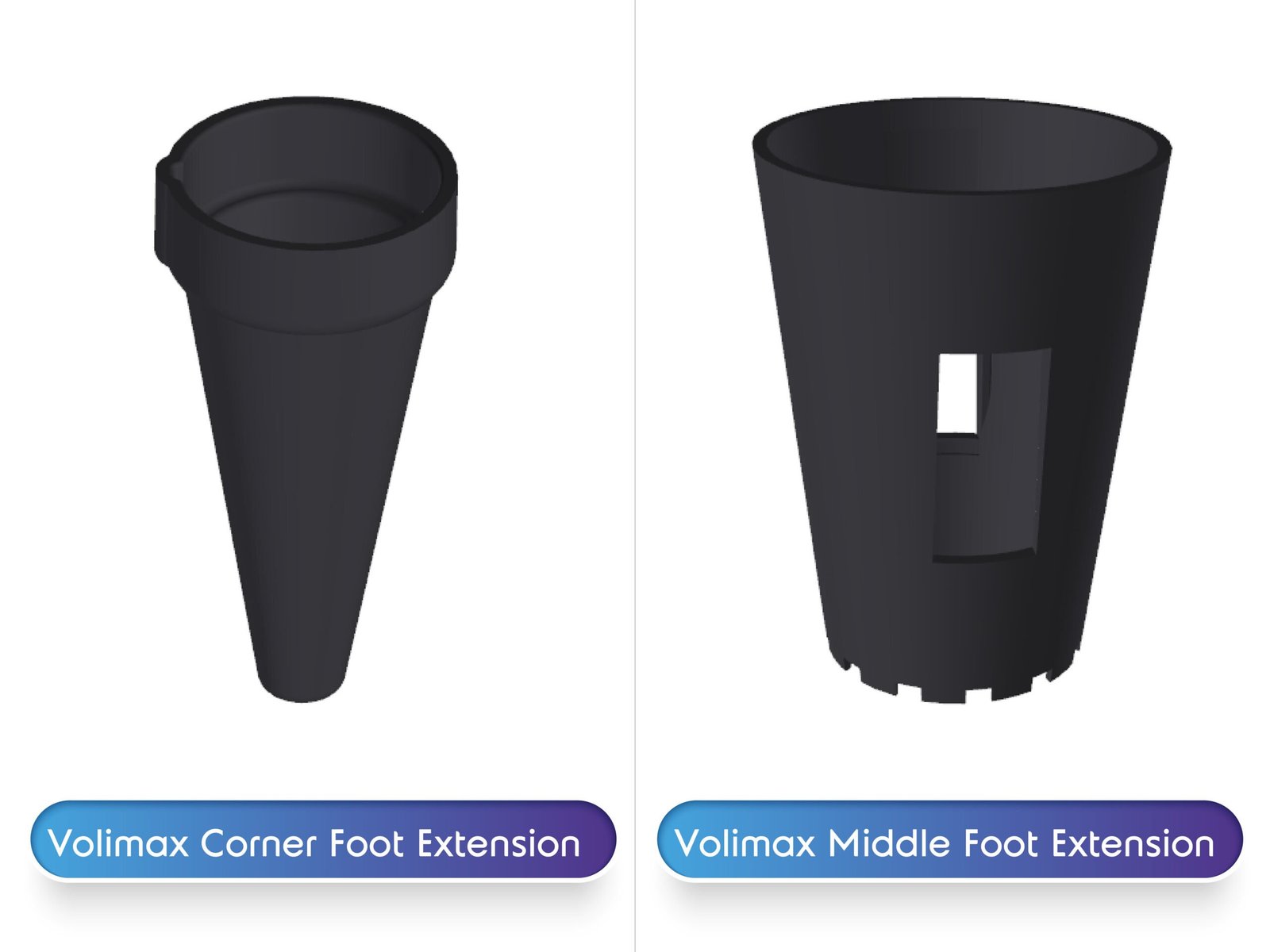

Volimax Foot Extensions

Unlike similar solutions, all Volimax disposable formworks are produced with a standard 70 mm foot.

Volimax disposable formworks for voided slabs have been especially designed in this way since slab thicknesses less than 70 mm in an unrealistic and risky under real job-site conditions.

However, in accordance with the project design, the need for a thicker lower slab can be achieved by attaching foot extensions of 80, 90, 100, 110 or 120 mm to 70 mm fixed legs.

Thanks to this different design, ABS Yapı always keeps inventory ready for immediate shipment and can easily take back any surplus products.

Volimax Accessories

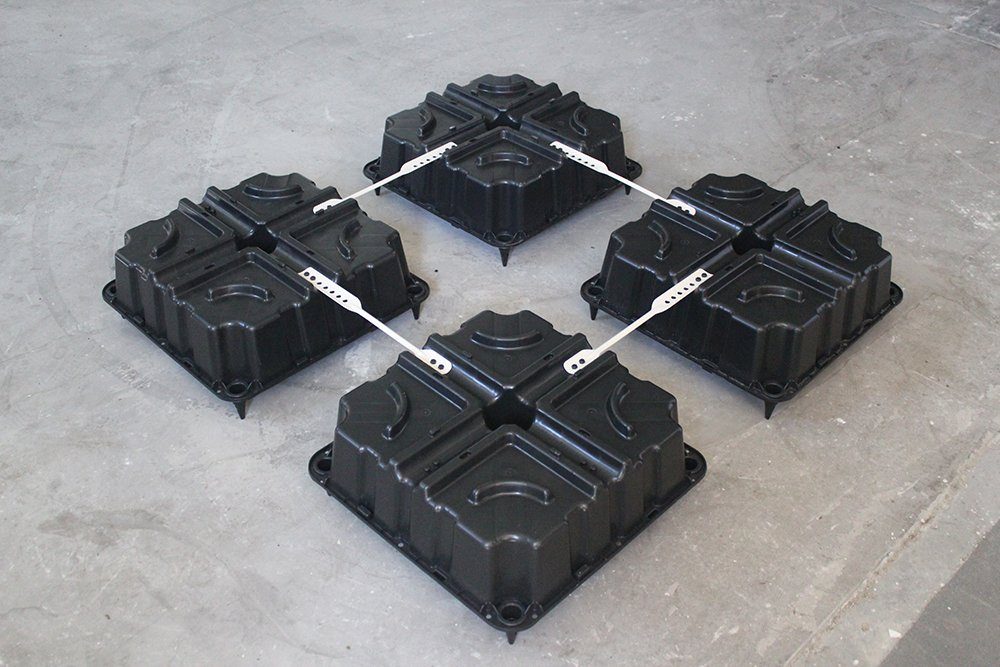

Volimax Spacer

When placing Volimax disposable formworks on site, a spacer can be used so that the distance between the formworks can be adjusted quickly and easily. The spacer ensures that the distance between two formworks is fixed at 10, 12, 14, 16, 18 or 20 cm. It is recommended that the formworks do not move during concrete casting, and that they are connected to the underlying structural steel with a steel wire. However, Volimax spacers also help the formworks not to move during casting.
